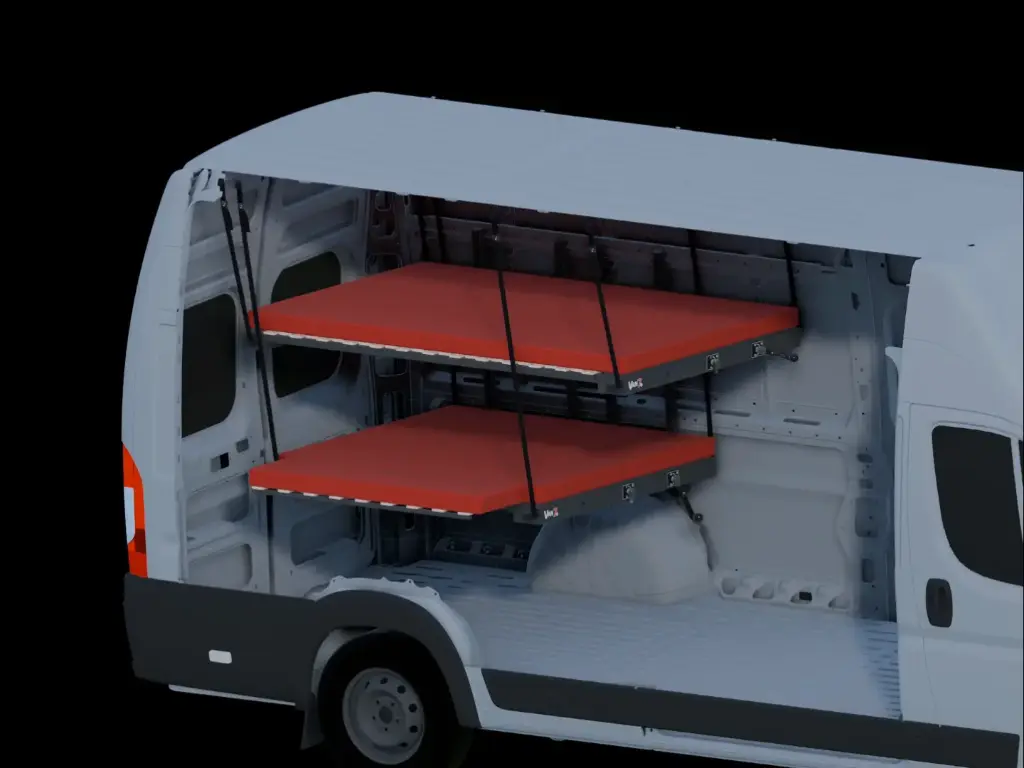

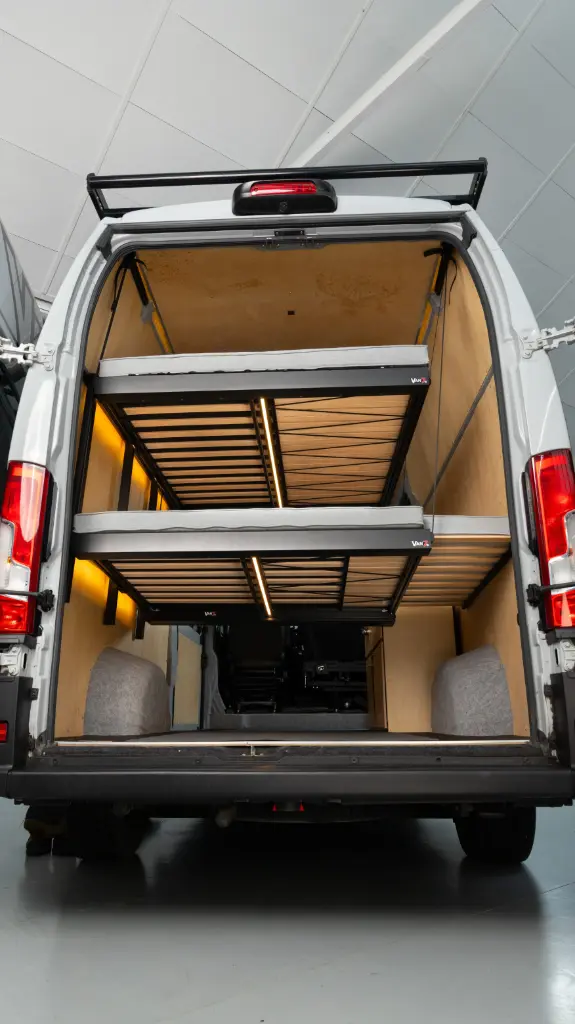

VAN7 bunk lift bed for up to 5 people
What our customers love most is the unique leveling feature that allows you to make the bed perfectly horizontal with a single pull, even on the most uneven campsites, so you can rest as comfortably as at home.
Only with this function is it possible to fix a floating bed base to your desired height and angle securely to the side – so that the bed does NOT sway!
For many campers, weight and functionality are crucial in a small space. The crank mechanism is faster and 17kg lighter than an electric motor. The VAN7 bed base always works, and thanks to our fixing function without storage structures and rails that significantly affect the space and generate noise during travel.
A 140cm wide bed contains a 190cm wide sleeping surface. The world’s first hubbed bed with slat extension. This allows you to extend the sleeping surface to the maximum width of your vehicle after lowering it.
We ensured that the bed wouldn't produce any noise during the journey, allowing you to fully enjoy the ride.
If you can handle a screwdriver and tape measure, or know someone who can, installing the new series with the included video tutorial is a breeze. Of course, we also have installation partners who can take care of installing the Hubbet. Depending on the vehicle, you’ll receive the appropriate mounting consoles. Some vehicles, like the H2 Sprinter, don’t require any mounting consoles.
The indirect, dimmable lighting (adjustable to your mood) creates a pleasant ambiance above and below the bed. The LED strip is seamlessly integrated into the aluminum profiles.
The VAN7 Hubbett hangs via 4x 25mm safety belts and buckles, each rated for 400daN. This equates to 1600kg – the bed's dynamic load is permissible at 270kg. Each belt suspension is secured with 2x M6 locking nuts. An M6 locking nut can withstand 4-5kN against a vehicle panel under shear – that’s 400-500kg per rivet nut. For the VAN7 Hubbett belt suspensions, 8 locking nuts are installed at the final section of your vehicle’s wall.
The VAN7 Hubbett offers you the space and comfort you need when sleeping in a small mobile space. It folds away quickly at the ceiling and you have a massive amount of storage space for bikes or an extra seating group.
Delivery Starts Soon
You will find the estimated delivery time in the price.
3 Year Warranty
Weight
-
Dimensions
-
Maximum Drop from Ceiling
170cm
Material
Aluminum - Steel - Beech
Compatible
Standard Mattress 140cm x 200cm
Load Capacity
Up to 270kg
Typing
Non-Typing
System
Mechanically Operated
Safety Belt
Available
