VAN7 cockpit lift bed with slatted frame extension

What our customers love most is the unique leveling feature that allows you to make the bed perfectly horizontal with a single pull, even on the most uneven campsites, so you can rest as comfortably as at home.
Only with this function is it possible to fix a floating bed base to your desired height and angle securely to the side – so that the bed does NOT sway!
For many campers, weight and functionality are crucial in a small space. The crank mechanism is faster and 17kg lighter than an electric motor. The VAN7 bed base always works, and thanks to our fixing function without storage structures and rails that significantly affect the space and generate noise during travel.
A 140cm wide bed contains a 190cm wide sleeping surface. The world’s first hubbed bed with slat extension. This allows you to extend the sleeping surface to the maximum width of your vehicle after lowering it.
We ensured that the bed wouldn't produce any noise during the journey, allowing you to fully enjoy the ride.
If you can handle a screwdriver and tape measure, or know someone who can, installing the new series with the included video tutorial is a breeze. Of course, we also have installation partners who can take care of installing the Hubbet. Depending on the vehicle, you’ll receive the appropriate mounting consoles. Some vehicles, like the H2 Sprinter, don’t require any mounting consoles.
The indirect, dimmable lighting (adjustable to your mood) creates a pleasant ambiance above and below the bed. The LED strip is seamlessly integrated into the aluminum profiles.
The VAN7 Hubbett hangs via 4x 25mm safety belts and buckles, each rated for 400daN. This equates to 1600kg – the bed's dynamic load is permissible at 270kg. Each belt suspension is secured with 2x M6 locking nuts. An M6 locking nut can withstand 4-5kN against a vehicle panel under shear – that’s 400-500kg per rivet nut. For the VAN7 Hubbett belt suspensions, 8 locking nuts are installed at the final section of your vehicle’s wall.
The VAN7 Hubbett offers you the space and comfort you need when sleeping in a small mobile space. It folds away quickly at the ceiling and you have a massive amount of storage space for bikes or an extra seating group.
Delivery Starts Soon

     You will find the estimated delivery time in the price.

3 Year Warranty
Weight

32 kg

Dimensions

1400L x 1120W x 80H

Maximum Drop from Ceiling

170cm

Material

Aluminum - Steel - Beech

Compatible

Standard Mattress 140cm x 200cm

Load Capacity

Up to 270kg

Typing

Non-Typing

System

Mechanically Operated

Safety Belt

Available

VAN7 cockpit lift bed with slatted frame extension

https://van7.com/web/image/product.template/13/image_1920?unique=3873861

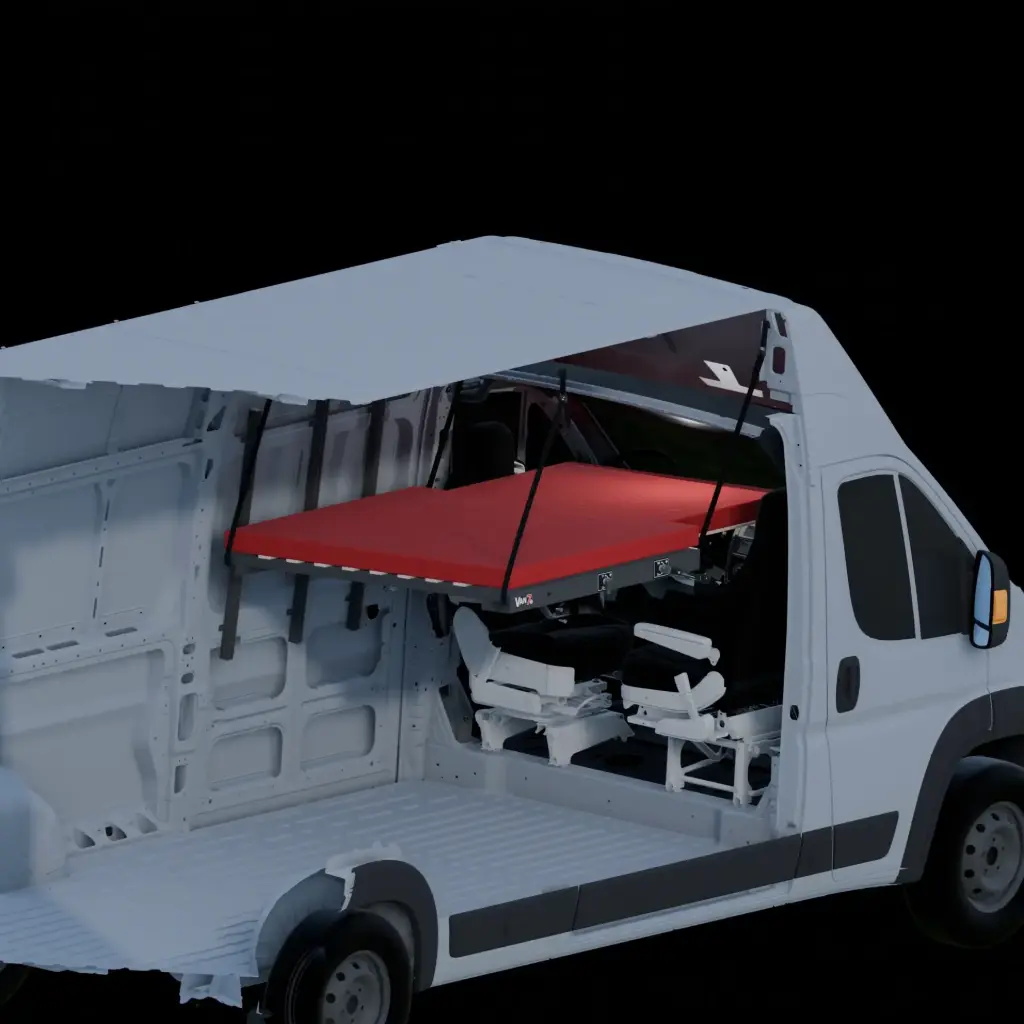

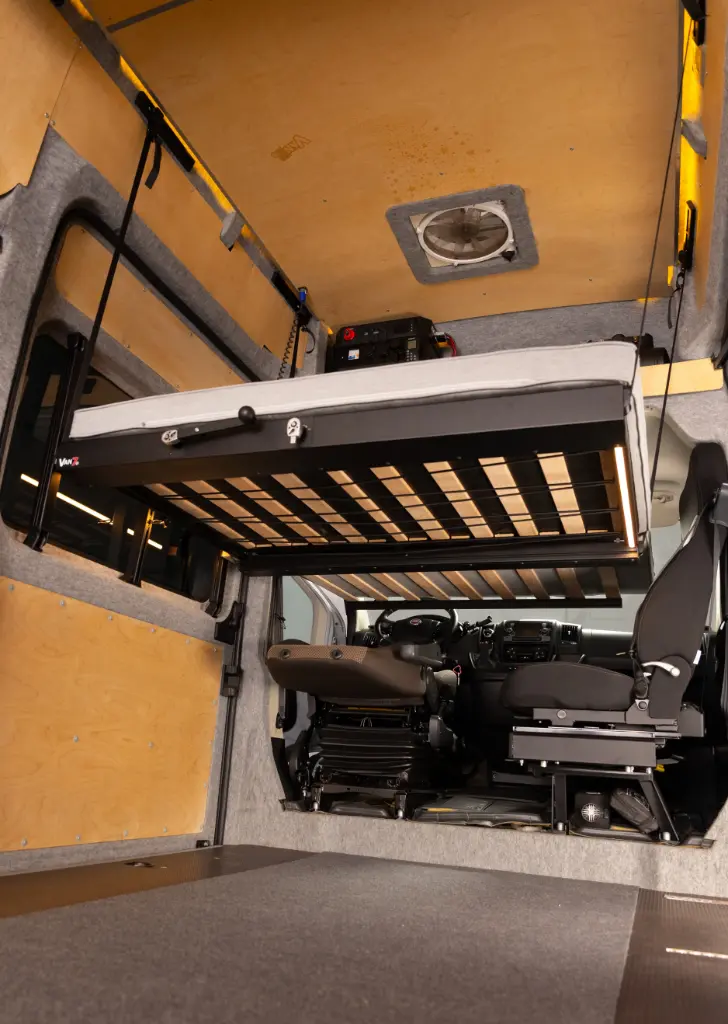

For campers who want to save even more space and weight. The cockpit lift bed is a true innovation that enables new layout concepts. Compact sizes of 140x110 cm or 160x110 cm under the ceiling, with an extension reaching up to 200 cm in length. After lowering it smoothly and leveling it – so you always sleep horizontally no matter how the vehicle is positioned – the integrated slatted frame can be extended up to 200 cm, for example into the driver’s cabin, to make use of that space as well. The extension is secured with a 25 mm strap.

2,840.00 € (Netto)

+568.00 € (20% Ust)

3,408.00 € 3408.0 EUR 3,408.00 € (Gross)

Not Available For Sale

  • Fixierseite
  • size

This combination does not exist.
